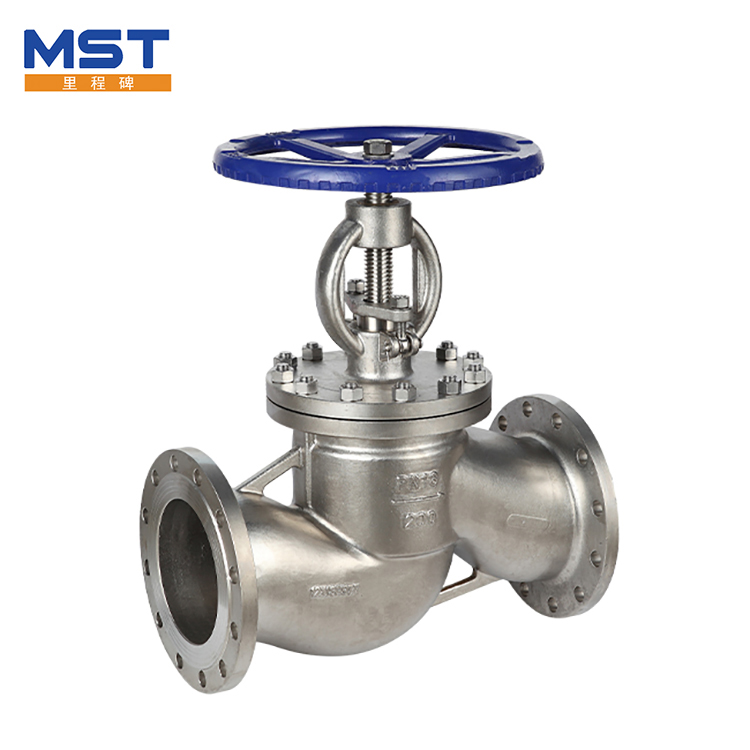

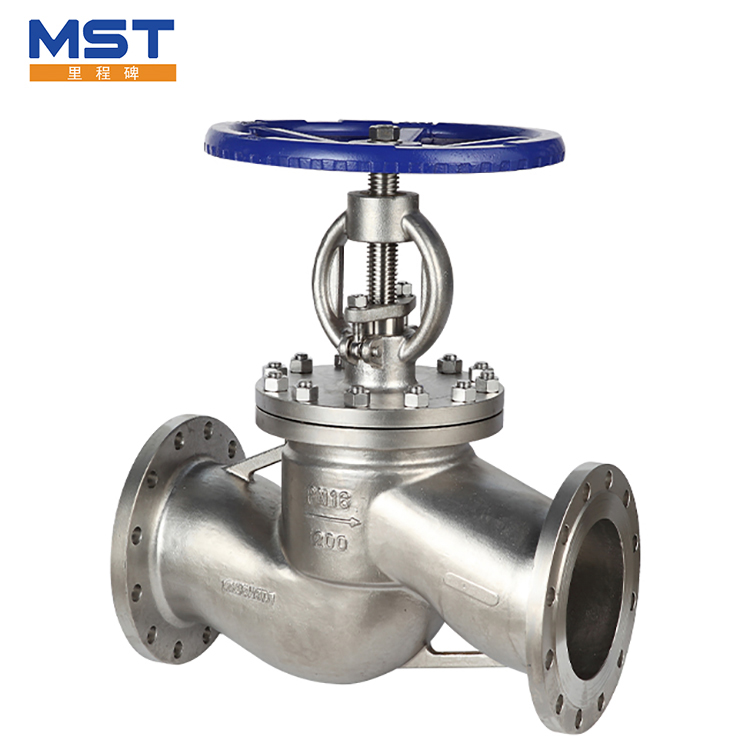

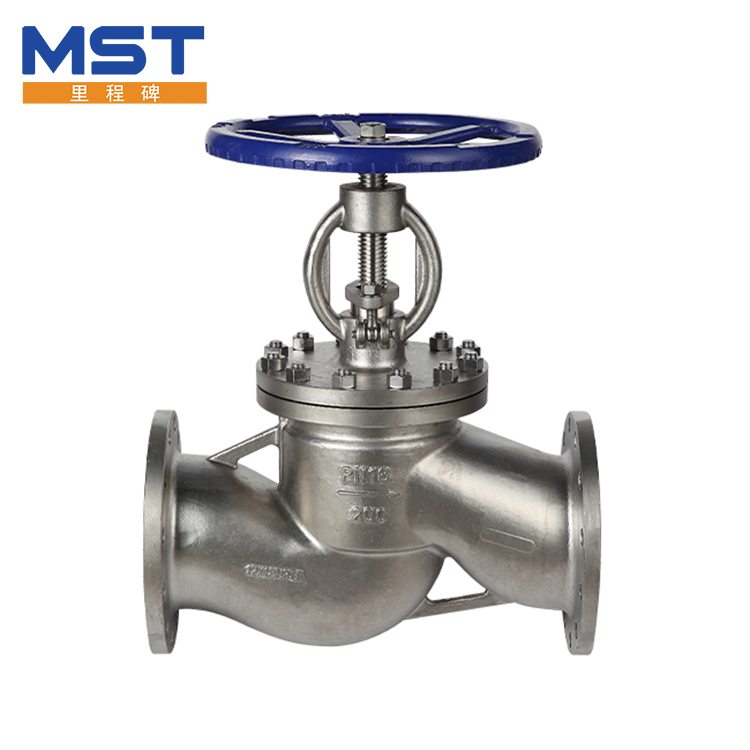

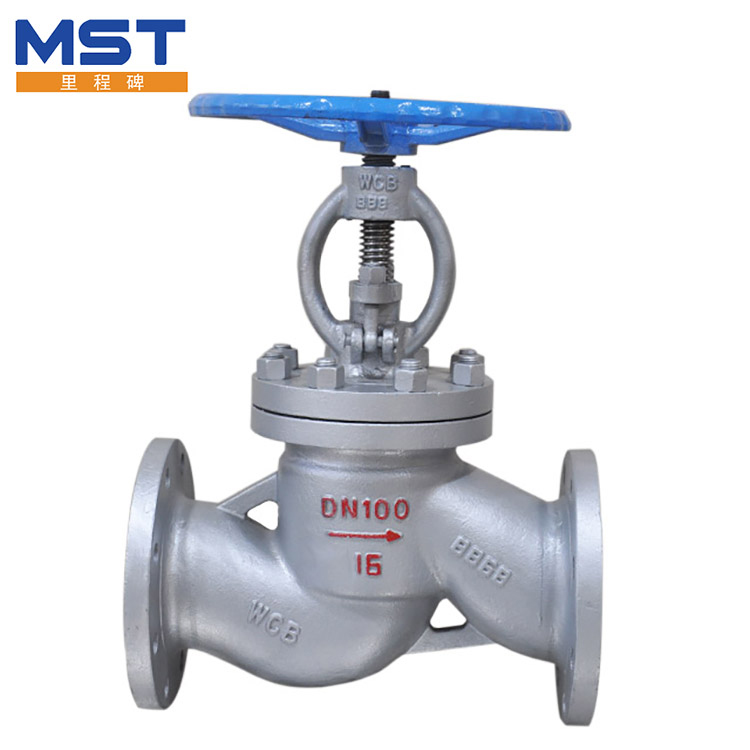

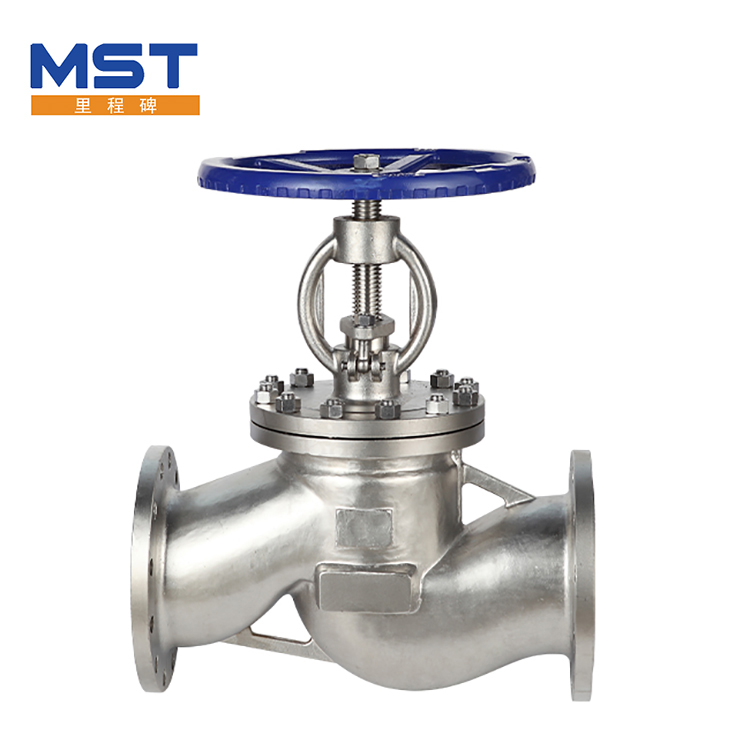

Introduction of Cast Steel Globe Valves

Cast Steel Globe Valves are linear motion closing-down valves in which the closure member is moved squarely on and off the seat. Usually the closure member is referred as a disc, irrespective of its shape. The seat opening varies in direct proportion to the travel of the disc. This proportional relationship between valve opening and disc travel is ideally suited for duties involving regulation of flow rate. Cast Steel Globe Valves are most suitable for throttling and controlling fluid flow and are generally employed in small size piping.Cast Steel Globe Valves design necessitates two changes in the direction of flow and this causes resistance in liquid lines and objectionable pressure drop. The installation of Cast Steel Globe Valves is made so that the flow is up through the seat ring and against the bottom of the disc. This prevents accumulation of dirt and debris above the disc.

1. This valve is a new type of throttling, cut-off and venting product. The valve adopts cage-shaped enigma throttling and has the characteristics of multi-level throttling effect, obvious throttling effect, reliable sealing, easy operation and maintenance, etc.

2. The valve uses double seals (hard and soft seals) to ensure reliable sealing. The carbide cover can be more resistant to airflow erosion and wear. The double seal can achieve zero leakage under high-pressure gas medium conditions. Valve has long service life

3. The sealing surface of the valve seat adopts tapered sealing, which is helpful for the valve itself to clean the dirt attached to the sealing surface.

4. The valve disc is equipped with a balance hole and a piston seal to ensure stable operation under the full pressure difference condition of opening/closing, light and flexible opening, and small opening and closing torque.

5. Throttle cut-off vent valve and double-acting throttle valve have both throttling and cut-off (zero leakage sealing) functions. The throttling part is separated from the sealing surface to reduce the erosion of the seal by the air flow.

Working principle for Cast Steel Globe Valves

The cast steel stop valve consists of a movable disc and a fixed ring seat located in a roughly spherical body. It is mainly designed to stop, start and regulate flow. It is located in the middle of the pipeline and parallel to the pipeline. The opening on the valve seat is closed by the valve disc. . When the handle is turned manually or by an actuator, the valve disc is lowered or raised by the valve stem. When the valve disc is fully lowered, fluid flow is cut off. When the disc is fully raised, fluid flow reaches its maximum rate. When the disc is raised below the maximum level, the fluid flow rate is adjusted in proportion to the vertical travel of the disc.

What are The Cast Steel Globe Valves used for

Cast Steel Globe Valves may be used for most duties encountered in fluid handling process piping systems.

Although the Cast Steel Globe Valves can be used as a block or isolation valve, it is primarily designed to regulate flow in the partially open position, while Cast Steel Globe Valves are designed for either the fully opened or fully closed position.

When considering Cast Steel Globe Valves for on-off isolation service, design selection should receive careful consideration because maintaining a tight seal against the strong force pushing up on the disc is difficult.

The Cast Steel Globe Valve, compared to the gate valve, has a short stem travel between the open and closed positions, has relatively little wear and is easier to repair.
