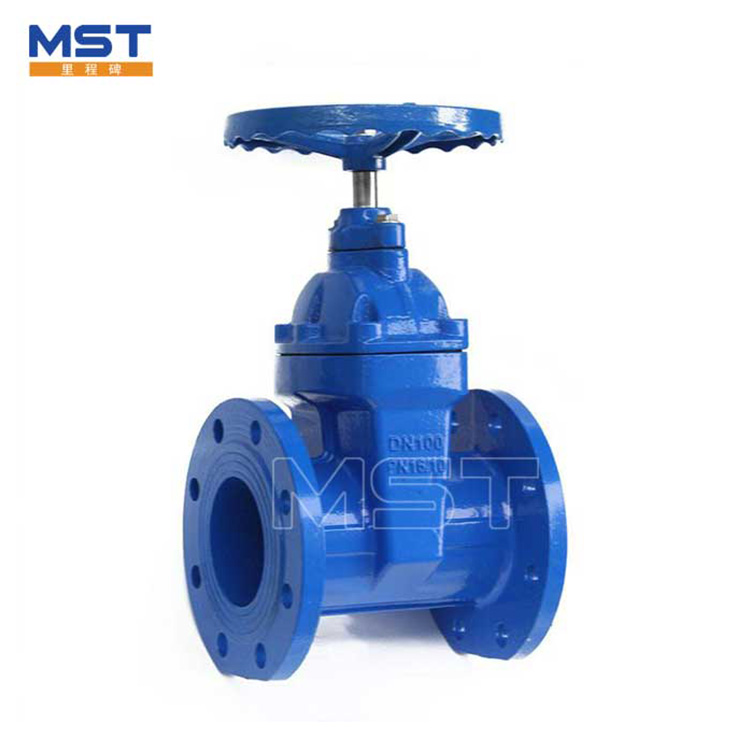

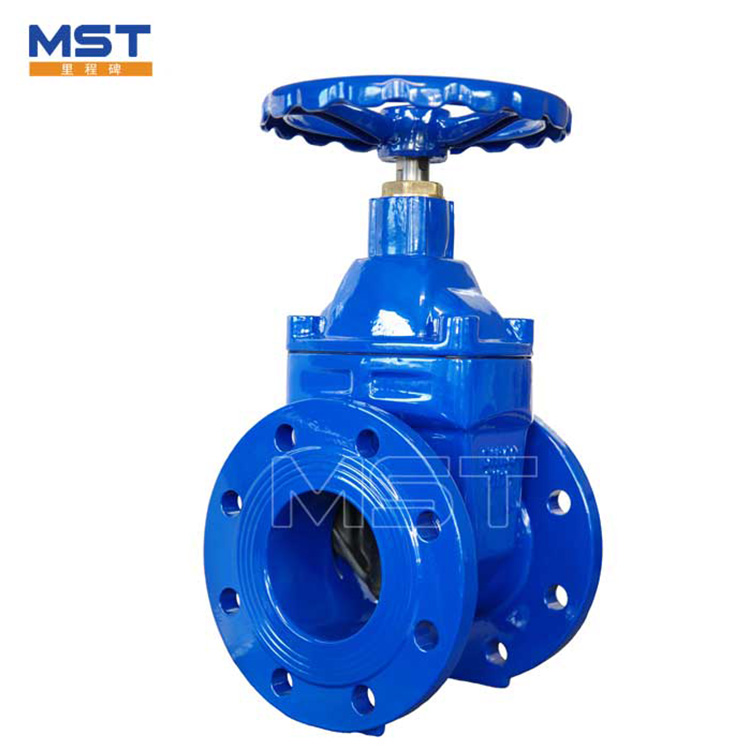

Double flange sluice valve

You can rest assured to buy customized Double flange sluice valve from Milestone. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

The opening and closing part of Double flange sluice valve is a gate, and the movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate has two sealing surfaces. The two sealing surfaces of the most commonly used model gate valve form a wedge. The gate of the wedge gate valve can be made into a whole, called a rigid gate; it can also be made into a gate that can produce slight deformation. In order to improve its manufacturability and compensate for the deviation of the angle of the sealing surface during processing, this kind of gate is called an elastic gate.

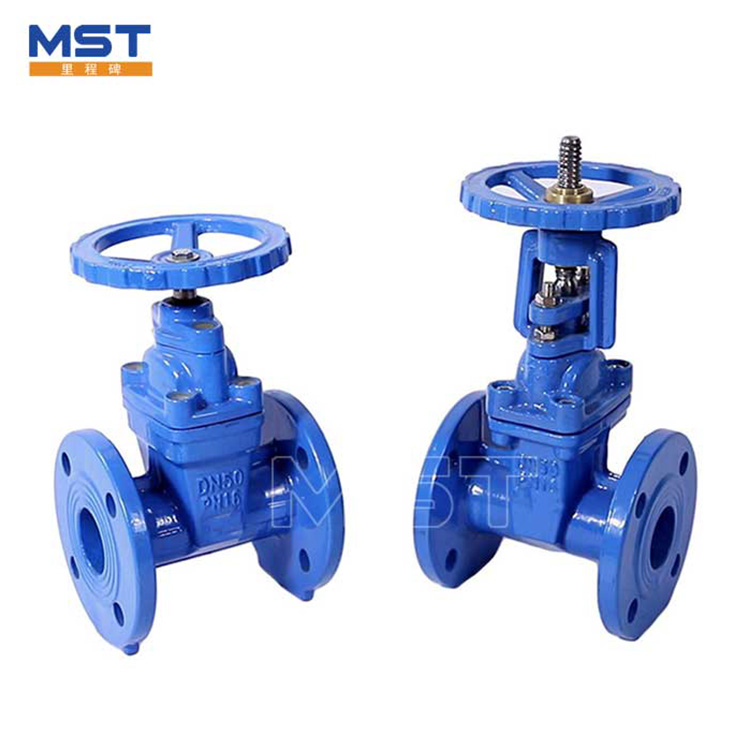

1)Double flange sluice valve is available in non rising as well as rising spindle type suitable for clear water up to 450 ℃.
2)Double flange sluice valve is designed with total compliance with applicable design and testing standards. All designs are validated for stress analysis.
3)Double flange sluice valve find wide application in water works,water/effluent/sewage treatment plants.
4)Double flange sluice valve have Rigid and sturdy design
5)Low pressure loss across the Double flange sluice valve
6)Double flange sluice valve is suitable for clear water up to 45 C and 5000 ppm turbidity, other fluids with maximum pressure / temperature conditions within the scope of IS:14846；
7)Long service life and leak-tightness after thousands of open / close cycles of Double flange sluice valve
8）Size Range of Double flange sluice valve : 32 to 1500mm
9）Pressure Ratings of Double flange sluice valve : PN10, PN16
10）End Connection of Double flange sluice valve： Flanged
